E-Business applications :

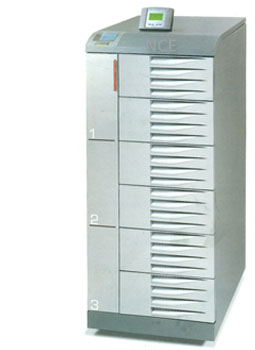

MASTERYS EB is the top of the range system, satisfying the most remanding expectations. It is yet another confirmation of NCE Technologies UPS 's technological supremacy.

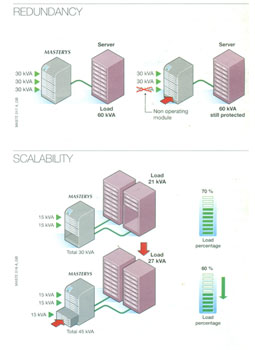

A flexible and modular NO SINGLE POINT OF FAILURE system which , since all its components are redundant (power unit, controller, batteries, battery charger, etc.), is able to guarantee unequalled availability of power supply for the most powerful and sensitive IT Applications: data processing centres, ISP's, ASP's, server farms and other major IT applications.

The concept of vertical modularity, which has already been applied by NCE Technologies UPS very successfully, represents security of investment for users. The increasing need for protection is adequately satisfied by the scalability of the number of UPS Modules, while the initial investment is safeguarded.



PRODUCT CONFIGURATIONS

Model

Input/output

KVA

Redundancy

Back-up time std

MAS-EB 330

3/3

30(2*15)

N+1

11’

MAS-EB 345

3/3

45(3*15)

N+1/ N+2

11’*

MAS-EB360

3/3

60(2*30)

N+1

4’

MAS-EB390

3/3

90(3*30)

N+1/ N+2

4’*

Back up time at 75% of the load.
*using an external battery cabinet type W

MAIN FEATURES

1. Mounted on wheels for ease of handling
2. Redundancy of all the main components to guarantee maximum operating reliability
3. Power modules can be moved and replaced on site
4. IGBT rectifier able to reduce harmonic distortion to a value of less than 3%
5. Intelligent : embedded LAN connection for improved UPS Supervision
6. Advanced graphics display for total system control
7. Redundant batteries : the battery packs are connected to each other in two distinct strings. If one battery in a string is not functioning, it does not compromise the backup time provided by all the batteries belonging to the other string.
8. Expert battery system
9. Always _on mode
10. Global supply system
11. Energy saver
12. Back feed protection(internal or external)
13. Internal manual by-pass
